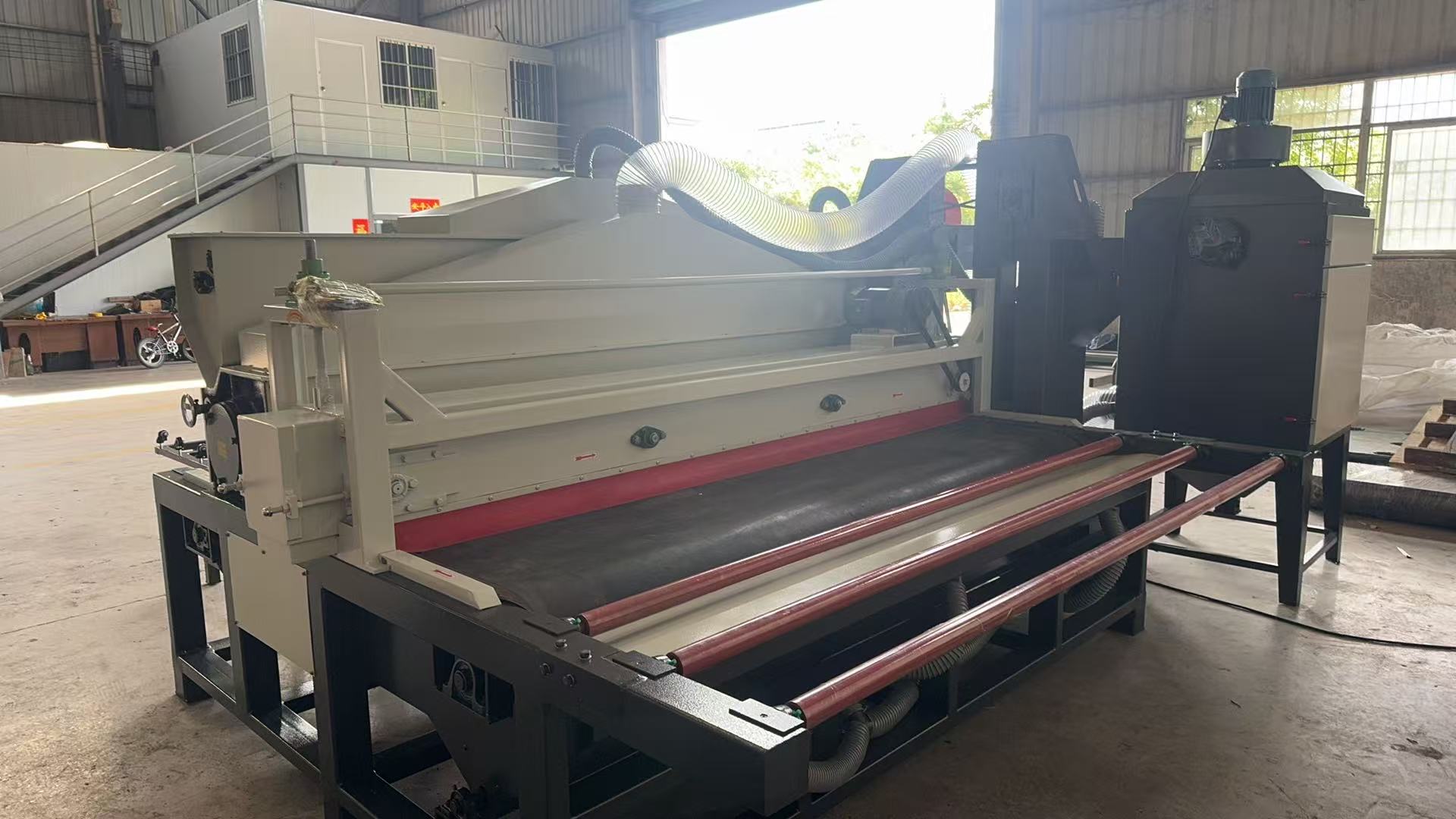

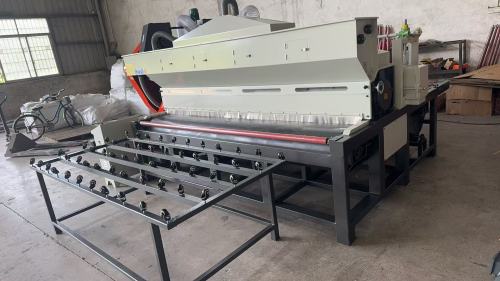

YH3000P  2.6Meter Glass automatic sandblasting machine

Glass automatic sandblasting machine which is designed according to the marketing requirement, is suitable for processing 3-25mm thickness of flat glass and steric pattern. The equipment adopts an intelligent control system, runs stably, operates conveniently, and can significantly improve production efficiency. Equipped with an efficient sand recycling device, it not only meets the needs of large-batch, high-quality glass sandblasting but also effectively reduces material waste, saves energy, and protects the environment. The equipment uses an automatic loading and unloading system and advanced control technology, suitable for long-term continuous work, with strong stability and reliability. Made of high-quality materials, the machine has a long service life, low maintenance costs, and outstanding economy, making it an ideal choice for glass processing enterprises.

• Fully automatic control function, reducing manual intervention and saving labor costs
• Conveyor belt speed can be adjusted through the frequency converter, equipped with a digital display screen for convenient and reasonable control of the processing flow
• Built-in bag dust collector, effectively reducing dust, no need to use an air compressor, energy-saving and environmentally friendly
• Equipped with an automatic sand recycling system, sand material recycling, reducing material waste, environmentally friendly and energy-saving
• Suitable for automatic sandblasting treatment of various materials such as glass, stainless steel, acrylic, etc.
• Support for multiple areas of independent control, meeting different processing technology needs, flexible and applicable
• Optimized design of the transmission system, ensuring stable machine operation and reliable performance
• Using high-speed sandblasting technology, sand distribution is uniform, and the processing surface is smooth and delicate
• Built-in automatic sand sweeping function, further improving operational efficiency

Technical Parameter

1.Size (Length×Width×Height): 4210×3450×1850mm

2. Glass Thickness Range : 3-25mm

3. Maximum glass :  2500mm width

  Min Glass Size : 100x100mm

4. Speed for sandblasting: 30-100㎡/h

5. Weight: 3500KG

6. Voltage: 380V; 50HZ

7. Total power: 8.1kw
